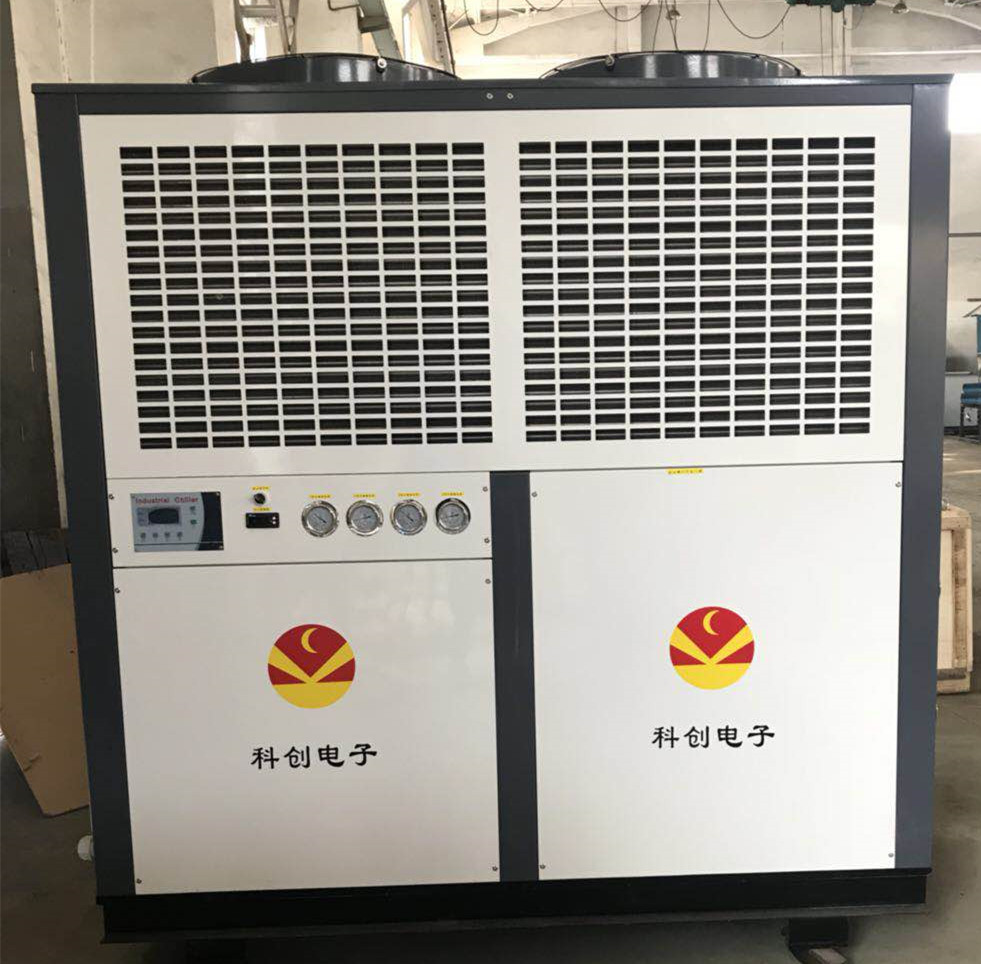

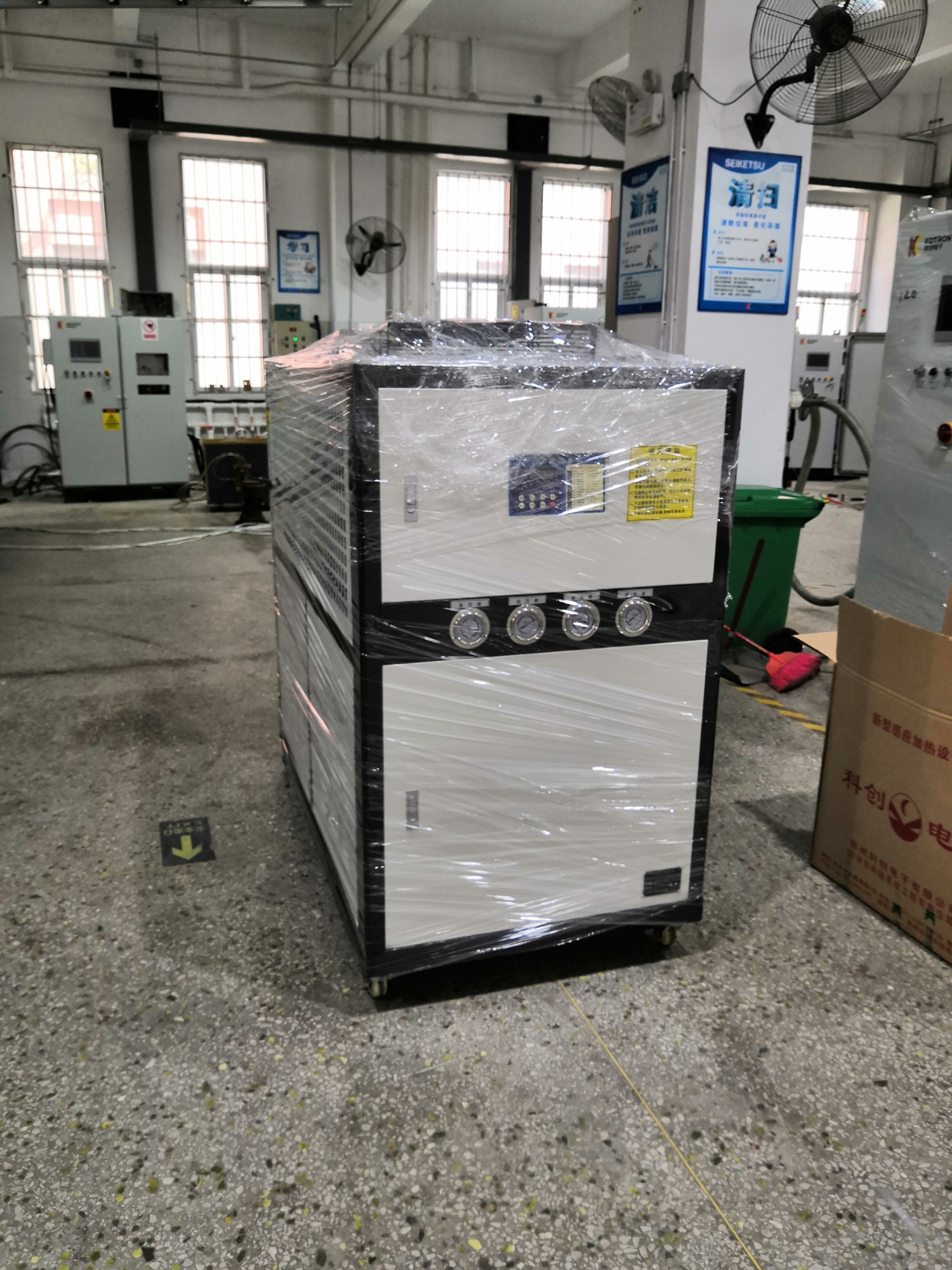

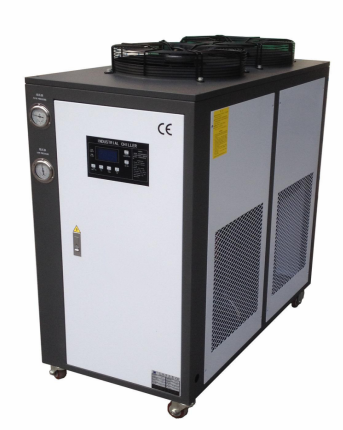

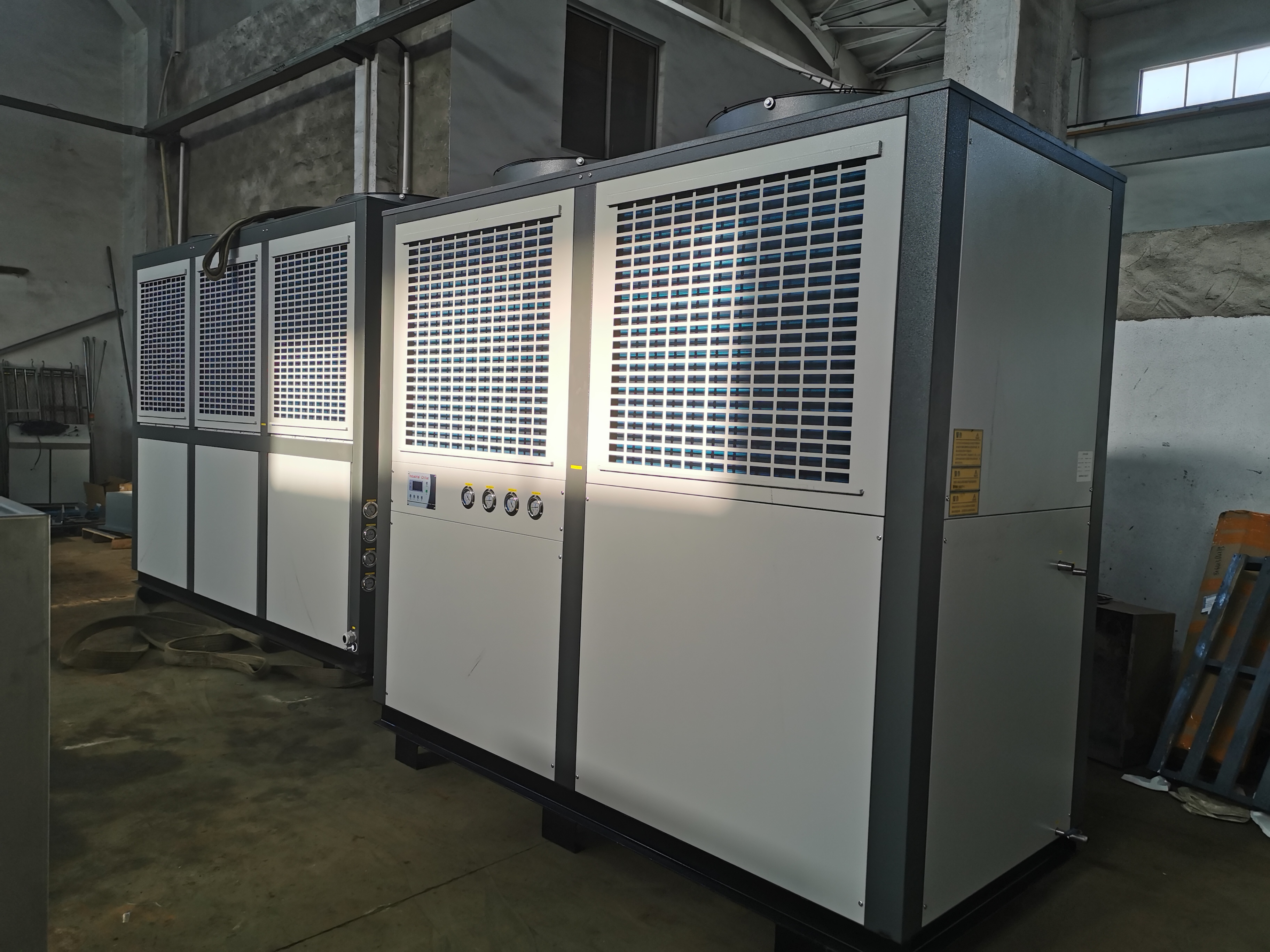

Industrial water chiller
Introduction of Industrial Water Chiller
This industrial water chiller adopts the world-famous compressor manufacturers: Panasonic, Sanyo, Daikin, and The United States ” COPELAND ” the latest generation of an efficient and fully enclosed scroll compressor, which provides multiple safety protection, low noise, energy-saving, and durability. Cold condenser, high-speed punch hole, flanging quality is reliable. Double flanging, copper tube and fin more close contact, high heat exchange efficiency. The use of imported copper pipe and automatic elbow welding, greatly enhance the oxygen density, prevent refrigerant leakage phenomenon. It is especially suitable for the areas with a lack of water resources or high hardness. Equipped with a microcomputer controller (with fault self-display function), imported refrigeration accessories of international famous brands to ensure long-term and reliable operation of the unit.
Features of Industrial Water Chiller
● Adopt the high-efficiency scroll compressor or piston compressor with international famous brand special low temperature, lower noise, less vibration, higher efficiency, better performance, lower failure rate, more reliable, energy-saving and environmental protection.
● Using the world brand contactor, relay, thermal protector, expansion valve, pressure controller, drying filter, greatly improves the reliability of the whole machine.
● Shell and tube condenser with high-efficiency copper tube.
● Compact structure, sufficient cooling capacity, high efficiency, easy to clean and maintain.
● The evaporator adopts the reinforced tube with internal and external threads, the copper tube has internal threads, the external surface of the copper tube is smooth, the cooling effect is good, the evaporator tube body is insulated with 25mm thick PE insulation board, no condensation, little cooling loss.
● Built-in stainless steel water tank, high performance, high flow special water pump; Some models have two independent refrigeration systems, which can automatically adjust the number of working systems to achieve maximum energy saving, and the system can be used as a backup for each other with higher reliability.
● The high-precision digital controller can intuitively and accurately measure the cold water temperature with an accurate value of ±0.1℃. The controller can intuitively and accurately display the operation and fault status of the compressor, water pump, and refrigeration system.
● Easy to operate, just press the switch, the unit can run automatically.
● The boxboard of the unit is precisely processed by CNC punch press and sprayed with electrostatic powder. After high-temperature baking paint cream color, luxury and beautiful, corrosion resistance, strong structure, durable.
Applications of Industrial Water Chiller
This industrial water chiller is widely used in plastic, electroplating, welding, metal heat treatment, coating, electron, chemical, pharmaceutical, food, needle mushroom cultivation, grain and oil production, solar photovoltaic industry and air separation, environmental test chamber, automotive engine air intake system/whole room air conditioning, refrigeration, cold storage, etc.
Can control the temperature range of -10℃-30℃, and can be arbitrarily adjusted, has an excellent refrigeration capacity, complete models, to meet the needs of different scenes of refrigeration, is a new generation of refrigeration equipment model.
| Model Item | KCLD-5 | KCLD-8 | KCLD-10 | KCLD-15 | KCLD-20 | KCLD-25 | KCLD-30 | ||
| Cooling Capacity
| kcal/h | 11223 | 17630 | 22446 | 35948 | 45554 | 52615 | 68336 | |
|
| KW | 13.05 | 20.5 | 26.1 | 41.8 | 52.97 | 61.18 | 79.46 | |
| Input power | KW | 5.3 | 7.85 | 26.1 | 15 | 19.56 | 21.96 | 29.54 | |
| Power | 3PH-380V/50HZ | ||||||||
| refrigerating fluid | Name | R22(R134A/R407C/R410A/R404A) |
| ||||||
|
| control mode | capillary tube | Expansion valve |
| |||||
| Compressor | Model | Fully enclosed scroll type (piston type) |
| ||||||
|
| Power | KW | 4.1 | 3.31*2 | 4.1*2 | 12.4 | 7.9*2 | 9.1*2 | 7.9*3 |
| Condenser | Model | High efficiency red copper tube with aluminum fin + low noise external rotor fan | High efficiency red copper tube with aluminum fin + low noise external rotor fan |
| |||||
|
| Air Flow | m3/h | 5000 | 8000 | 10000 | 15000 | 20000 | 25000 | 30000 |
| Evaporator | Model | Tank coil/shell type |
| ||||||
|
| Chilled water flow | m3/h | 2.24 | 3.52 | 4.47 | 7.2 | 9.1 | 10.52 | 13.65 |
|
| tank capacity | L | 55 | 110 | 160 | 300 | 300 | 310 | 420 |
|
| ln/Ot Pipe Size | 1″ | 1-1/2″ | 1-1/2″ | 2″ | 2″ | 2-1/2″ | 2-1/2″ | |
| Water pump | Power | KW | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 4 |
|
| lift | M | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Safety protection | Compressor overheat protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/lack of phase protection, exhaust overheat protection |
| |||||||
| Weight | KG | 175 | 287 | 330 | 750 | 835 | 920 | 1080 | |
| Size | mm | 1140×560×1040 | 1320×720×1320 | 1530×780×1430 | 1850×990×1680 | 2000×1130×1720 | 2000×1130×1864 | 2000×1480×1900 | |
