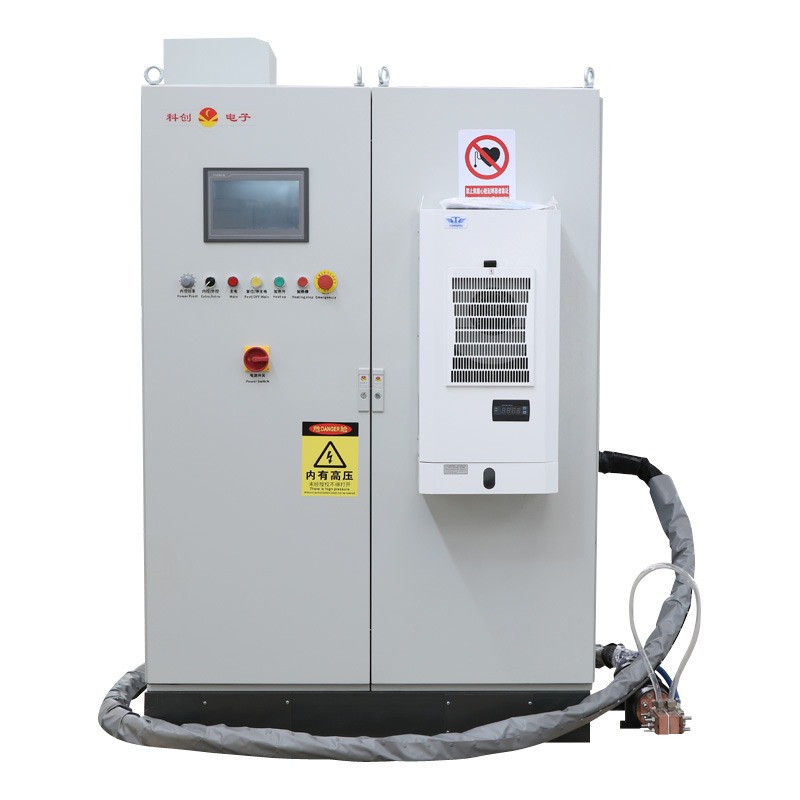

IGBT Digital Medium frequency Induction Heating power supply for annealing and pre-heating

Hardware features：

Rittal structure cabinet

2.5mm thick aluminum-zinc mounting plate

Water and electricity separation structure

Schneider low voltage electrical

Infineon IGBT

Efficient integral forming IGBT cold plate

Noninductive laminated bus

High strength nylon water collector

High temperature resistant carbon-free rubber water pipe

Non - polar non - inductive filter capacitor

Industrial true color touch interactive system

Fully isolated industry 485 communication

Fully isolated voltage and current acquisition system

IO acquisition photoelectric isolation

High speed DSP chip processor

Isolated power supply system with EMI

Important signal optical fiber transmission

Low latency high performance IGBT drive

Pure copper bus-plate

Compressor industrial cabinet temperature and humidity air conditioning

Protection features：

Hardware protection functions: over voltage, over current, overload, short circuit, IGBT fault, missing phase, fast melting open circuit, under voltage, water shortage, open door alarm, emergency stop alarm, etc

Software protection functions: power limit, current limit, voltage limit, frequency limit, frequency out of lock, etc

Protection: leakage protection, inductor tinder protection (optional)

Sound and light alarm function (optional)

External interface：

Isolated external start-stop interface

Isolated external power control interface

Isolated industry 485 communication interface

Isolated custom analog output interface

Isolation type custom analog input interface

Isolated power state output interface (start-stop, fault, ready, etc.)

Isolation type multifunction input interface

Isolation type multifunction output interface
