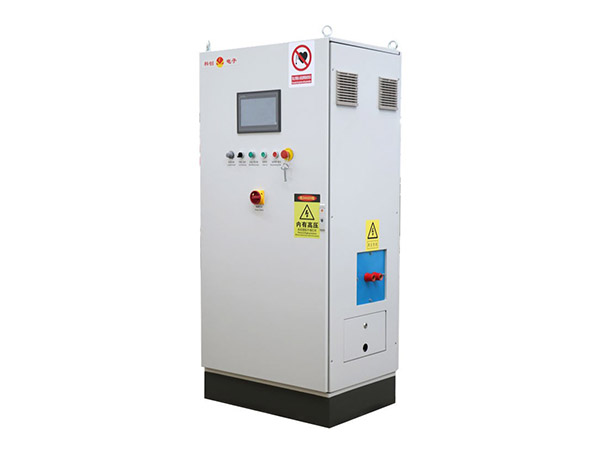

High precision parallel resonance power supply

Function features:

Full automatic frequency tracking

Incoming line phase sequence adaptive

Load line adaptation

Constant current, constant power control mode

Internal control, external control, program control arbitrary switch

Load prediction test function

Load matching indication function

Constant temperature control (optional)

Temperature curve control (optional)

Constant energy control (optional)

Product Features

Hardware features:

Rittal structure cabinet

2.5mm thick aluminum-zinc mounting plate

Water and electricity separation structure

Schneider low voltage electrical

Infineon IGBT

Efficient integral forming IGBT cold plate

Noninductive laminated bus

High strength nylon water collector

High temperature resistant carbon-free rubber water pipe

Non - polar non - inductive filter capacitor

Industrial true color touch interactive system

Fully isolated industry 485 communication

Fully isolated voltage and current acquisition system

IO acquisition photoelectric isolation

High speed DSP chip processor

Isolated power supply system with EMI

Important signal optical fiber transmission

Low latency high performance IGBT drive

Pure copper bus-plate

Compressor industrial cabinet temperature and humidity air conditioning

Protection features:

Hardware protection functions: over voltage, over current, overload, short circuit, IGBT fault, missing phase, fast melting open circuit, under voltage, water shortage, open door alarm, emergency stop alarm, etc

Software protection functions: power limit, current limit, voltage limit, frequency limit, frequency out of lock, etc

Protection: leakage protection, inductor tinder protection (optional)

Sound and light alarm function (optional)

Function features:

Full automatic frequency tracking

Incoming line phase sequence adaptive

Load line adaptation

Constant current, constant power control mode

Internal control, external control, program control arbitrary switch

Load prediction test function

Load matching indication function

Constant temperature control (optional)

Temperature curve control (optional)

Constant energy control (optional)

External interface:

Isolated external start-stop interface

Isolated external power control interface

Isolated industry 485 communication interface

Isolated custom analog output interface

Isolation type custom analog input interface

Isolated power state output interface (start-stop, fault, ready, etc.)

Isolation type multifunction input interface

Isolation type multifunction output interface

Product parameters

List of models in production High precision parallel resonance power supply

No.

Frequency

Model

Cabinet model

Size(mm)

Input voltage

Input current

Inverter frequency

Output power

Control precision

Power output range

Inverter power factor

Control mode

Cooling water pressure

Environment temperature



1

MF/super audio

XZG-120SBZ

Single door Cabinet

800*600*1750

380V±10%

50/60Hz



≤250A

1kHz-20kHz

≤120kW

1‰

5%-100%

≥0.96

Constant voltage, constant power, constant temperature

0.1MPa-0.3MPa



5℃-45℃





2

3

XZG-160SBZ

Double door Cabinet

1200*800*1750

≤350A

1kHz-20kHz

≤160kW

1‰

5%-100%

≥0.96

4

XZG-200SBZ

1200*800*1750

≤440A

1kHz-20kHz

≤200kW

1‰

5%-100%

≥0.96

5

XZG-300SBK

1400*900*1950

380V±10%

50Hz

≤660A

0.1kHz-20kHz

≤300kW

1‰

5%-100%

≥0.96

6

XZG-400SBK

1400*900*1950

≤880A

0.1kHz-20kHz

≤400kW

1‰

5%-100%

≥0.96

7

XZG-500SBK

Three door Cabinet

2400*1000*1950

≤1100A

0.1kHz-20kHz

≤500kW

1‰

5%-100%

≥0.96

8

XZG-600SBK

2400*1000*1950

≤1300A

0.1kHz-20kHz

≤600kW

1‰

5%-100%

≥0.96

9

XZG-1000SBK

2400*1000*2200

500V±10%

50Hz

≤2200A

0.1kHz-10kHz

≤1000kW

1‰

5%-100%

≥0.96

10

XZG-1500SBK

2400*1000*2200

≤3200A

0.1kHz-10kHz

≤1500kW

1‰

5%-100%

≥0.96
