Disc quenching machine tool

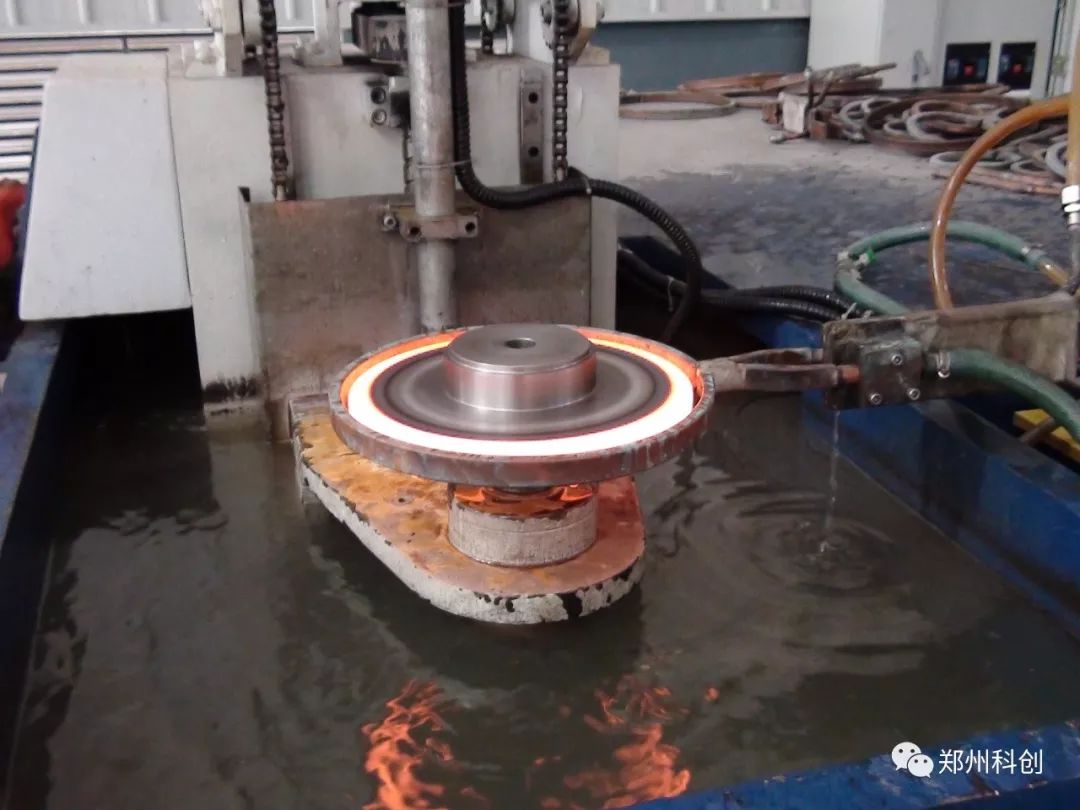

Disc quenching machine tool In the scope of modern industrial manufacturing, quenching process is one of the important links to improve the performance of metal materials. The advent of disc hardening machine tools has given this process higher precision, efficiency and flexibility. Working principle The disc quenching machine tool adopts advanced induction heating technology to generate eddy currents inside the metal workpiece through high-frequency current, and quickly heats it to the temperature required for quenching. Then it cools rapidly to change the organizational structure of the metal, thereby obtaining higher hardness, strength and wear resistance. Features and advantages High precision: It can accurately control the heating temperature and quenching time to ensure the stable and reliable quenching quality of the parts. High efficiency: The hardening process can be completed quickly to improve production efficiency. More parts can be processed in a shorter time. Flexibility: It is suitable for disc parts of different sizes and shapes and has strong versatility. Energy saving and environmental protection: Compared with traditional quenching equipment, it has lower energy consumption and less impact on the environment. Application field Automobile manufacturing: used for quenching treatment of engine parts, transmission systems, etc. Aerospace: High-performance quenching of aircraft structural...
-
High frequency Induction Heating Machine
Type High frequency induction heating machine Input voltage 380v /3 phase/50hz Rated power (standard configuration) 60KW-250KW Power regulation range 5%-100% (Digital regulation) Power control accuracy ±0.5% Oscillating frequency 150–200kHz Power Factor ≥97% Work pattern Constant current,constant power arbitrary choice Control core High performance dsp processor Controlling means Internal control and remote control arbitrary switching Operation interface Industrial touch screen+ button Communication interface RS485 Cooling-down method Combination of forced water cooling
-
80kW Induction heating machine for heat treating of metals such as shafts, gears and hub wheel rings, steel bars hardening and tempering
High Frequency Induction Hardening Machine What are the main characteristics of our induction hardening machine? Parameters of DSP digital smart power supply Type: XZZ-80 Input voltage: 380V/3phase/60Hz Rated power (standard configuration): 80kW Power regulation range: 5%-100% (digital regulation) Power regulation accuracy: ±0 .5% Oscillation frequency: 20-40KHz Power factor: ≥97% Operating mode Constant current: constant power random selection Control core: High-performance DSP processor Controls: Random switching of internal control and remote control Control interface: Industrial touch screen + button Communication interface: RS485 Cooling method: Forced water cooling combination
-
Complete set of Bucket Teeth Plate Induction Heating Machine with induction preheating lift platform
Complete set of Bucket Teeth Plate Induction Heating Machine with induction preheating lift platform
-
80KW high-frequency induction heating machine to Serbia
80KW high-frequency induction heating machine to Serbia
-
Merry Christmas
Merry Christmas heat treatment
-
CNC induction heating hardening machines for shafts quenching
Kechuang Turn-key High frequency induction heating machine heat treatment project done! CNC induction heating hardening machines for shafts quenching ready for shipment to Canada
-
Why do we need the mixed dual-frequency Application?
Mixed dual-frequency technology is applied to gear hardening
-
Zhengzhou Kechuang Heat Treatment
High-frequency quenching heat treatment of hardware tools, such as; vice, hammer, strong pliers, wrench.
-
Plane quenching of large steel plates
Product name: Thick steel plate Product specifications: 1000×100mm
