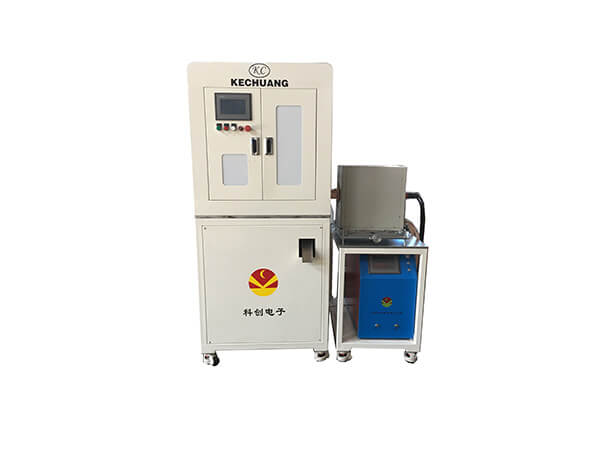

Hardening Machine Tools

This machine is mainly used for heat treatment workpieces of shaft and disk, and its positioning accuracy is high.

The heating part of the workpiece can be set according to different process requirements of the workpiece in the heat treatment using CNC programming.

Product Features

01

This machine is mainly used for heat treatment workpieces of shaft and disk, and its positioning accuracy is high.

02

The heating part of the workpiece can be set according to different process requirements of the workpiece in the heat treatment using CNC programming.

03

Continuous automatic heat treatment workpiece can be adjusted to complete the speed of movement or heating.

04

The rotation Angle and speed of the shaft workpiece are controlled by the CNC system to ensure the accuracy of the rotation Angle and the stability of the speed and heat treatment process.

05

The motion system of quenching transformer is driven by servo motor drive shaft, and the moving position of quenching transformer is adjusted by nc coordinate positioning, so as to achieve fast alignment of workpiece and adjustable heating speed.

Product parameters

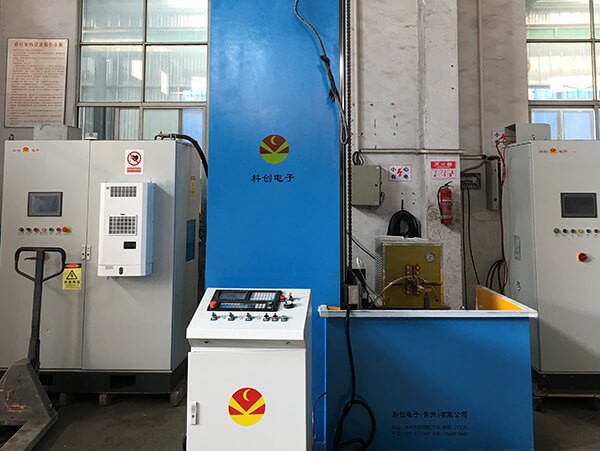

Model  JC-Z01
Type  Three - axis CNC quenching machine
Machine form Combined machine tool (workpiece movement, transformer-sensor movement)
CNC system Zhongda Nanjing
Way of working Manual and automatic
Quenching station number 1
Repeated positioning accuracy of workpiece lifting during quenching ±0.05mm
Adapt to the maximum turning diameter of the workpiece Φ1000mm
Transformer-inductor lifting stroke during quenching 800mm
Transformer-inductor lifting stroke during quenching 400mm
Maximum workpiece weight 500kg
Moving speed 0~3000mm/min
Rotating speed 0-80r.p.m
Transformer mount Set



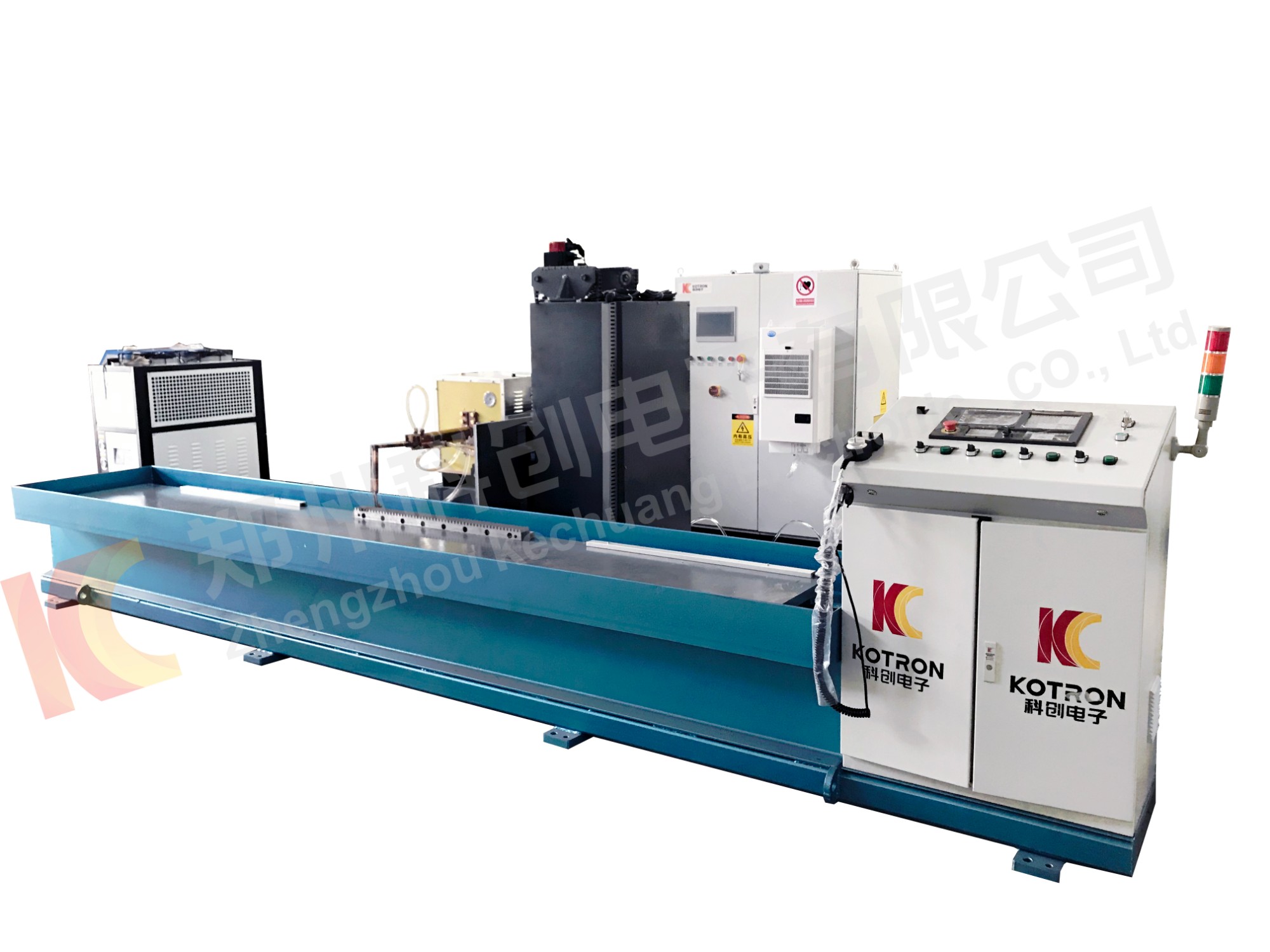

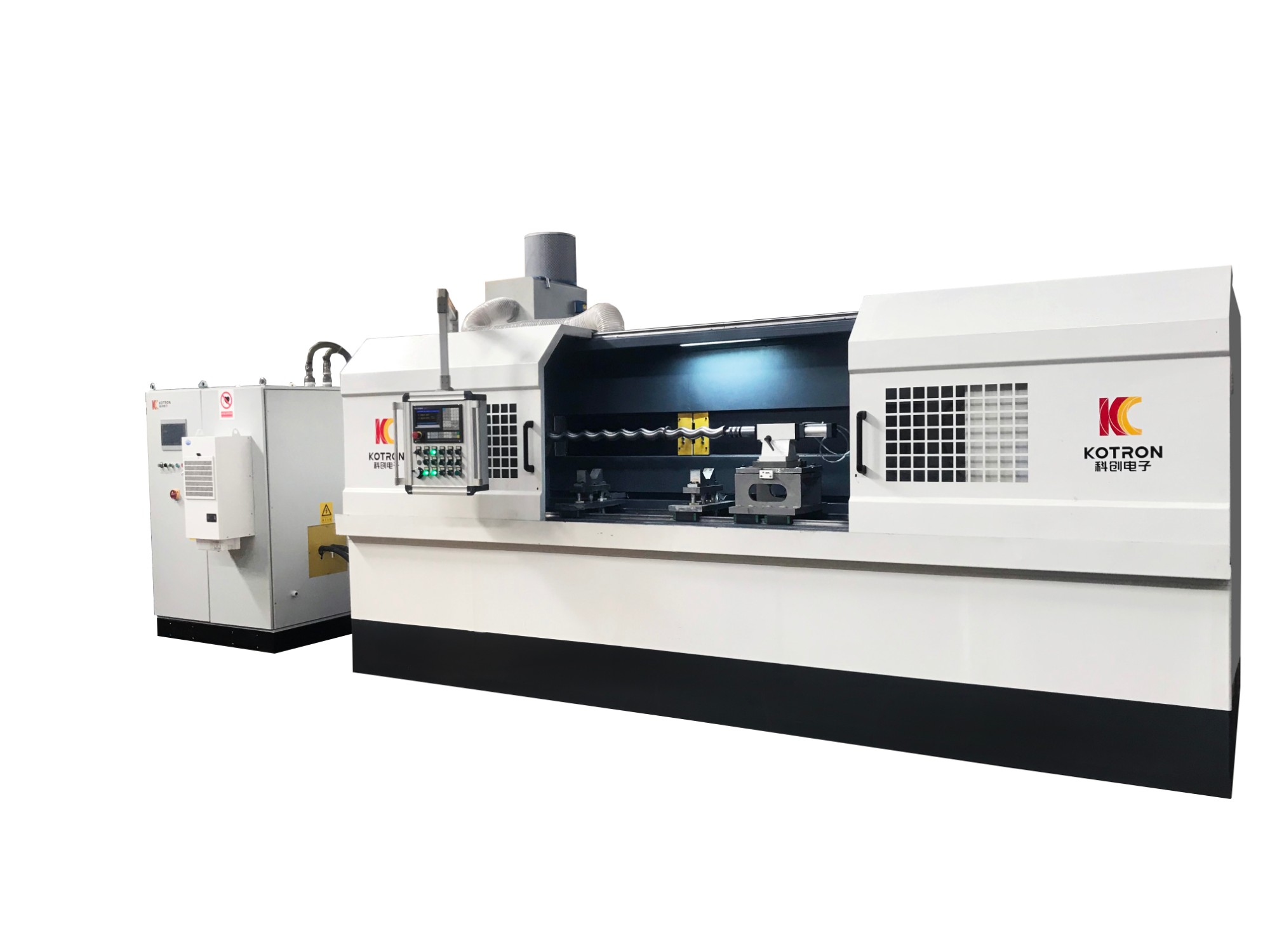

Model JC-S01
Type Special for hammer quenching
Rated voltage AC380V,50Hz three-phase four-wire system
Control System Siemens PLC
HMI Siemens touch screen
Transmission form Double chain drive
Maximum machining workpiece diameter 80mm
Maximum machining length 120mm
Maximum workpiece weight 300kg
Workpiece movement speed 0~2000mm/min
Device positioning accuracy ±0.1mm
Way of working Manual and automatic
Inlet pipe size 1.5 inches



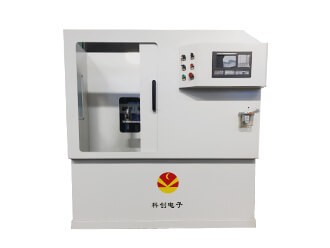

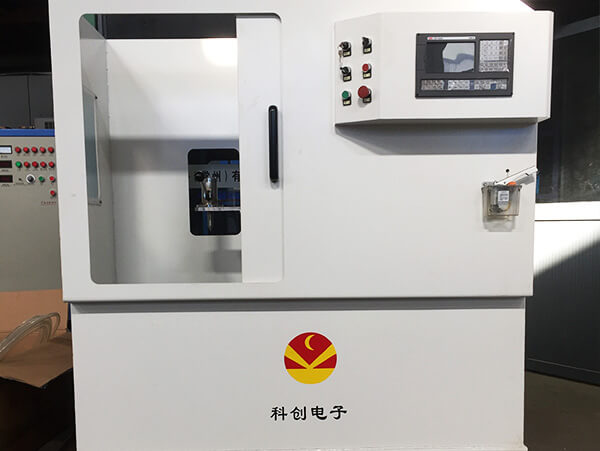

Model JC-Z01
Type Eight-station CNC quenching machine
Machine form Workpiece movement
CNC system Siemens S7-200smart+MCGS
Way of working Manual and automatic
Quenching station number 8
Repeated positioning accuracy of workpiece lifting during quenching ±0.05mm
Adapt to the maximum turning diameter of the workpiece Φ100mm
Adapt to the maximum length of the workpiece 200mm
Transformer-inductor lifting stroke during quenching 200mm
Maximum workpiece weight 10kg
Moving speed 0~4000mm/min
Rotating speed 0-100r.p.m
Transformer mount set
Platform size 400x400mm
Left and right adjustment ±100mm
Before and after adjustment ±100mm

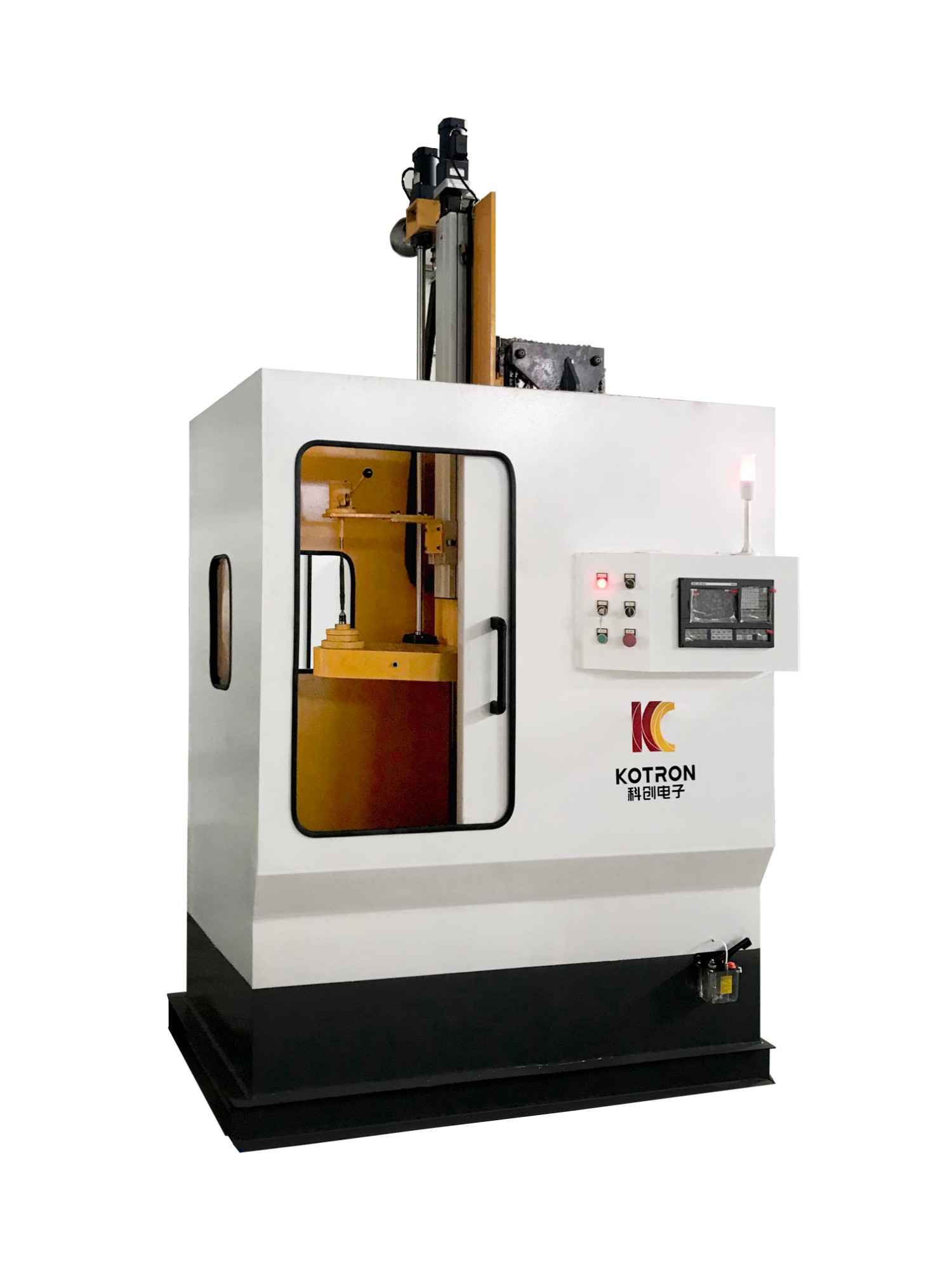

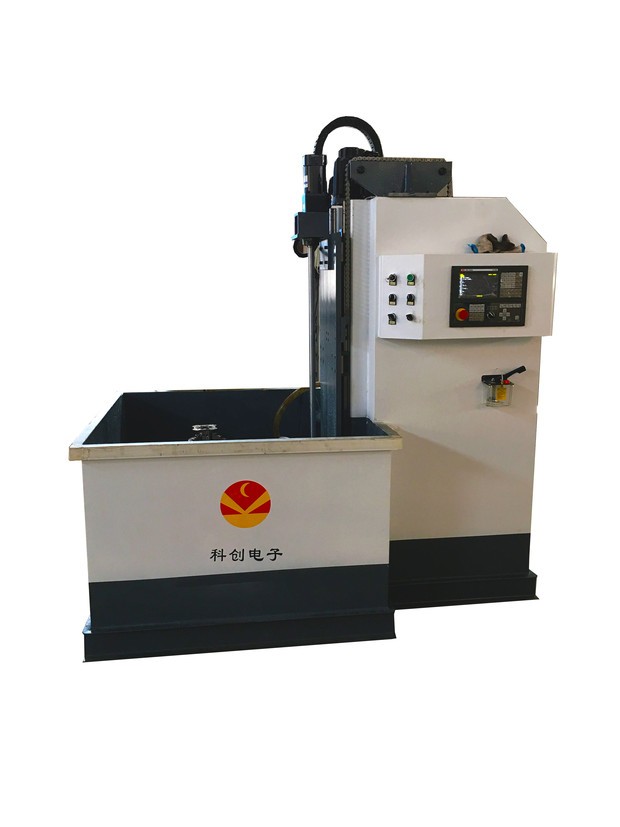

Model JC-W01
Type Combined numerical control quenching machine
Machine form Vertical machine (workpiece movement)
CNC system Beijing KND
Way of working Manual and automatic
Quenching station number 2
Repeated positioning accuracy of workpiece lifting during quenching ±0.05mm
Adapt to the maximum turning diameter of the workpiece Φ400mm
Adapt to the maximum length of the workpiece 600mm
Transformer-inductor lifting stroke during quenching 600mm
Maximum workpiece weight 20kg
Moving speed 0~5000mm/min
Rotating speed 0-200r.p.m
Transformer mount Two set
Platform size 500x500mm
Left and right adjustment ±60mm
Before and after adjustment ±80mm
