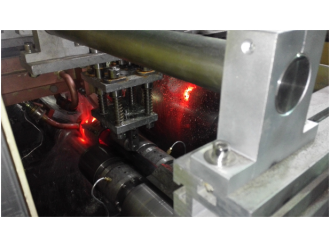

Automobile anti-collision beam pipe heat treatment production line

Automobile anti-collision beam tube heat treatment production line

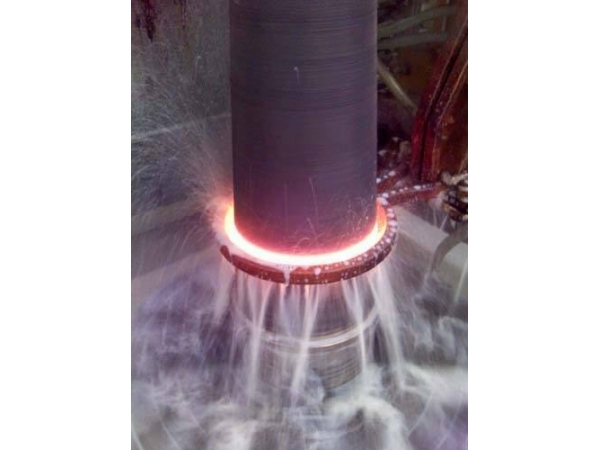

Concrete pump tube automatic quenching production line

Concrete pump tube automatic quenching production line Product name: Conveying straight pipe (single layer + composite)    Product specifications: φ120×500-3500mm   Induction power supply: 4×300KW /DSP/IGBT   Transformer: Special for ferrite   Control system: PLC+temperature control+energy monitoring+MES system   Cooling system: Power supply cooling + quenching liquid cooling   Production line: RGV trolley receiving material + nozzle grinding + robot feeding + inner wall quenching machine tool + robot blanking + conveyor line feeding + robot feeding + pipe head pressing sleeve + robot blanking     Key technologies: Industry 4.0 intelligent production line, flexible deployment and unmanned operation, seamless linkage of 4 sets of equipment, high integration of MES information, robot sky rail hoisting, and the overall layout is compact and reasonable.

Industrial pump rod induction quenching equipment

Industrial pump rod high frequency High frequency induction heating machine quenching equipment Water pump screw shaft induction quenching machine

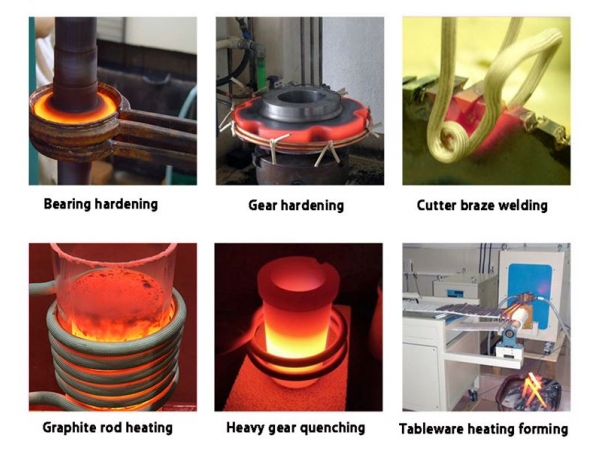

Wire tempering production line and steel strip bluing

Wire tempering production line

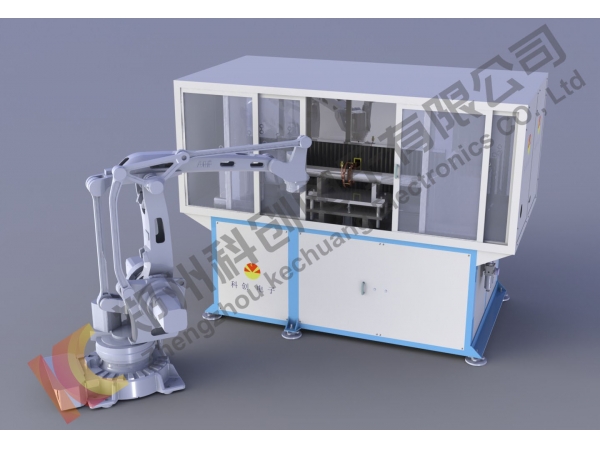

Pin shaft and Camshaft induction quenching and tempering production line

Plane quenching of large steel plates

       Product name: Thick steel plate        Product specifications: 1000×100mm

Pin shaft quenching and tempering production line

 Pin shaft quenching and tempering production line     Product name: Crawler pin    Product specifications: 190-228 (φ40-60mm)    Induction power supply: 250KW /DSP/IGBT    Transformer: customized ferrite    Control system: PLC+temperature control+energy monitoring+MES system    Cooling system: power supply cooling + quenching liquid cooling   Production line: Conveyor line + feeding robot + quenching machine tool + blanking robot + mesh belt tempering furnace + blanking robot + eddy current flaw detection non-destructive testing     Key technologies: High frequency induction heating machine hardening of outer cylindrical roller feeding, mesh belt tempering furnace connection production, highly integrated production line system, MES information communication, closed-loop monitoring of cooling flow, electronic fence safety protection, online non-destructive inspection of workpieces, automatic filtering of quenching liquid impurities.     Pin sleeve quenching and tempering production line      Product name: Crawler pin sleeve    Product specifications: 190-228 (φ40-60mm)    Induction power supply: 250KW /DSP/IGBT    Transformer: Customized ferrite    Control system: PLC+temperature control+energy monitoring+MES system    Cooling system: power supply cooling + quenching liquid cooling Production line: Conveyor line + feeding robot + external quenching machine tool + transfer robot + inner hole quenching machine tool + transfer robot + mesh belt tempering...

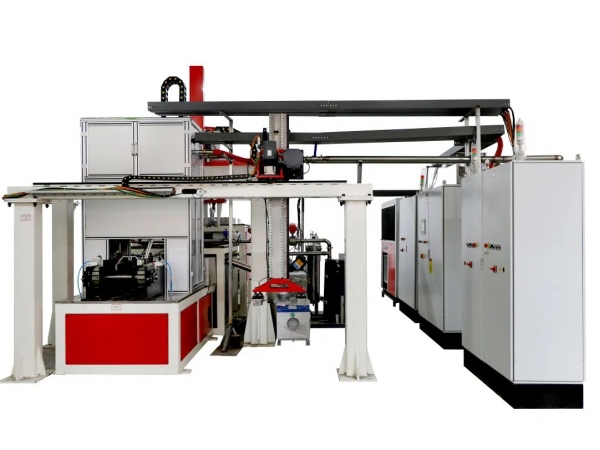

Chain track section tread quenching and tempering production line

Product name: Chain track section Product specifications: 190-228

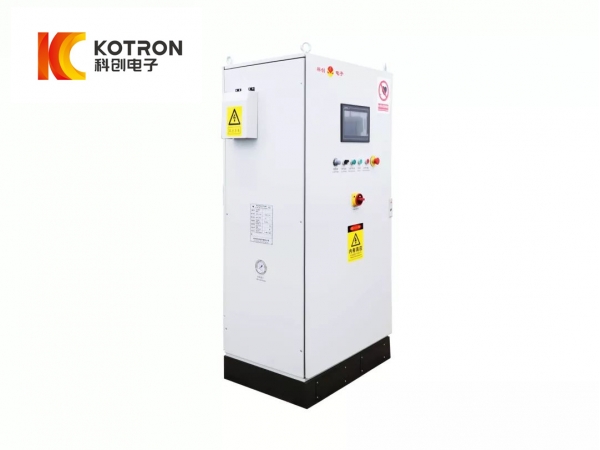

Automobile anti-collision bar quenching production line

    Product name: Car anti-collision bar       Product specifications: φ32×1300mm       Induction power supply: 300+2×80+30KW /DSP/IGBT
